Deye GB-LBS HV batterycluster control box (GB LBase+ Cables Included)
Deye GB-LBS HV batterycluster control box (GB LBase+ Cables Included) - Image 2
Deye GB-LBS HV batterycluster control box (GB LBase+ Cables Included) - Image 3

Deye GB-LBS HV batterycluster control box (GB LBase+ Cables Included)

R8000,00

A necessary add-on made especially for the GB-L High Voltage 4.09kWh Stack Battery is the DEYE HV Control Box + Base. Through the provision of a safe and well-organized installation and operation platform, this control box and base system improves the GB-L battery’s functionality and stability. It is an essential component of any energy storage system that makes use of DEYE’s cutting-edge battery technology since it guarantees the high-voltage battery’s safe and effective operation.

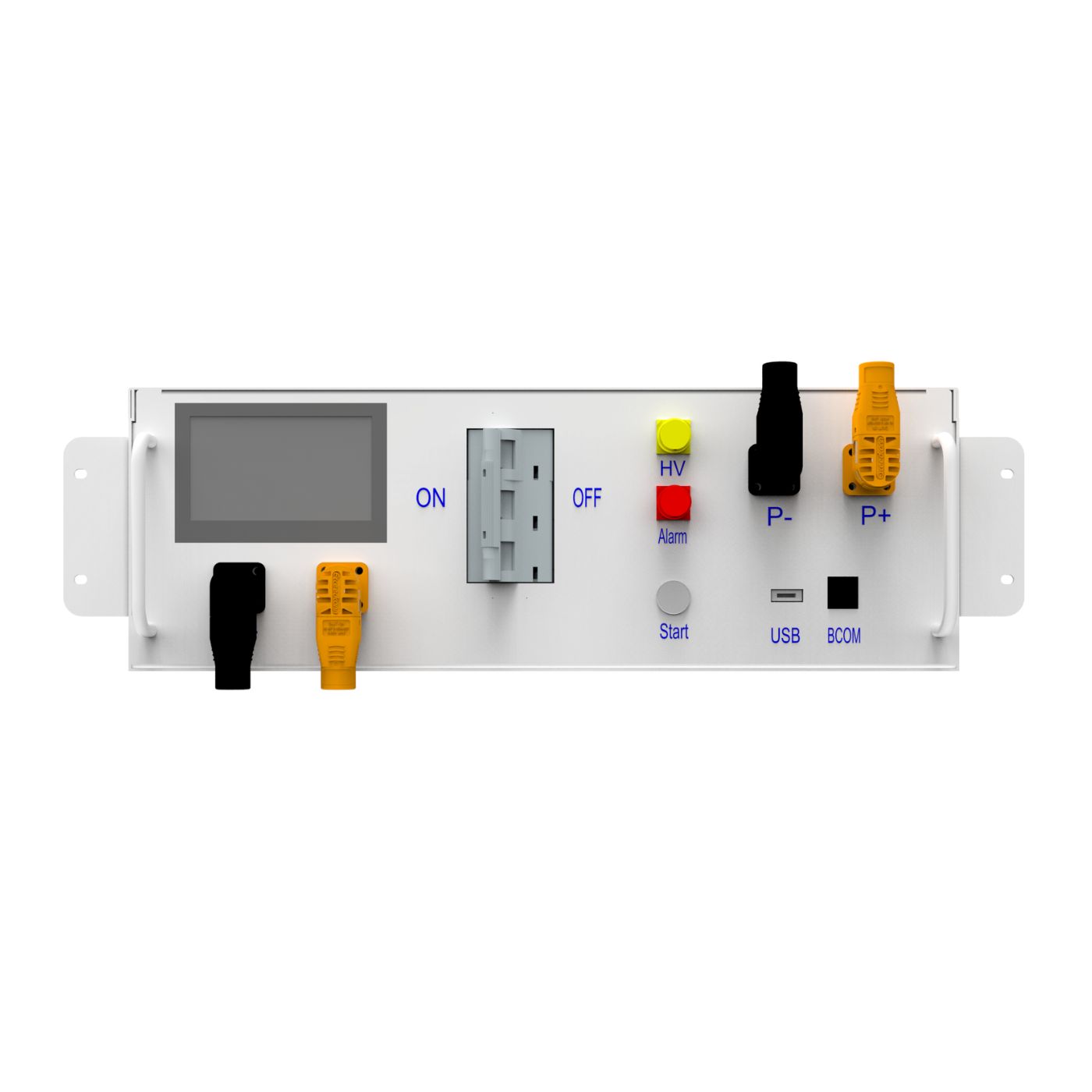

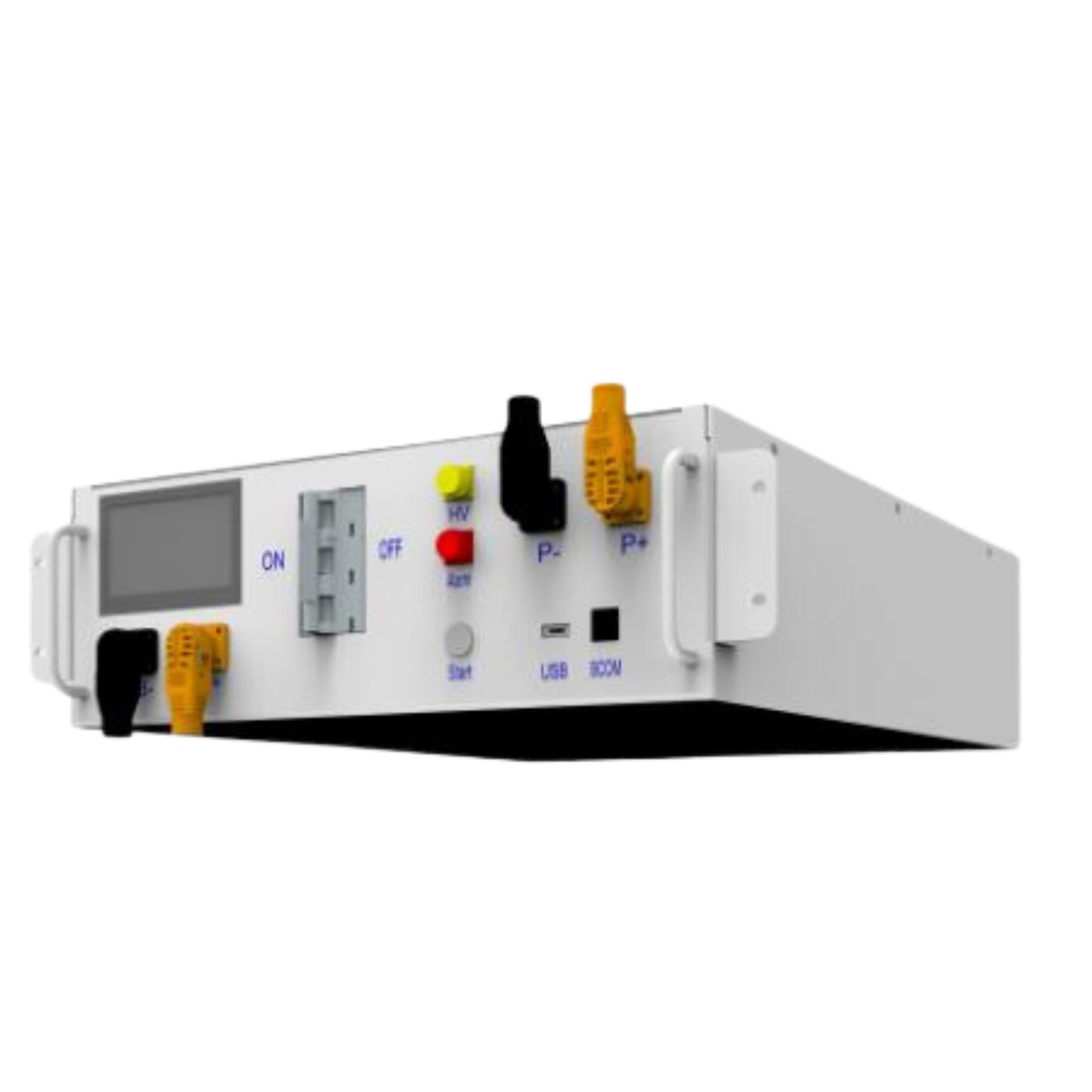

The GB-L High Voltage battery series is designed to effortlessly interact with the HV Control Box, which provides centralized control and simplified networking. It keeps important parts like fuses, breakers, and connecting points in one place, making the battery easy to manage and safe. By eliminating the need for intricate wiring and streamlining the installation procedure, this control box facilitates the configuration of your energy storage system.

The GB-L battery modules can be stacked on the accompanying base, which offers a strong and robust surface to do so, guaranteeing their secure placement. In addition to maximizing space use, this lowers the possibility of tipping or moving while the system is in use, improving overall safety. Multiple GB-L battery modules may be easily supported by the base, making it easy to scale as your energy needs increase.

The DEYE HV Control Box and Base work together to offer a complete solution for controlling and safeguarding your 4.09kWh GB-L High Voltage Stack Battery, guaranteeing maximum efficiency, security, and user-friendliness in any energy storage application.

Category:
The Deye GB-L Modular Battery System is a cutting-edge energy storage solution designed for versatility, safety, and efficiency. This innovative system offers a range of configurations to meet your specific energy needs, with the ability to connect 2 to 6 battery modules in series.

Key Features:

  1. Safety First: The GB-L system prioritizes safety with built-in explosion relief devices to manage gas buildup and fire protection devices that can cut off the fire source within 3 seconds.
  2. High-Voltage Stack: Our unique design connects modules in series without the need for cable connections, and the high-voltage platform enhances overall system efficiency.
  3. Advanced Thermal Management: Temperature detection is implemented for key components, including cells and power plug-ins, ensuring optimal performance and longevity.
  4. Wide Temperature Operation: An optional heating function allows the GB-L system to operate in low-temperature environments, making it suitable for a wide range of applications.
  5. Environmental Friendliness: With an IP protection grade of 65 and an anti-corrosion grade of ≥ C2, the GB-L system is built to withstand harsh conditions while minimizing its environmental impact.
  6. Intelligent and Visual: The system supports remote upgrades, real-time battery warning information push, and LCD data display for easy monitoring and management.

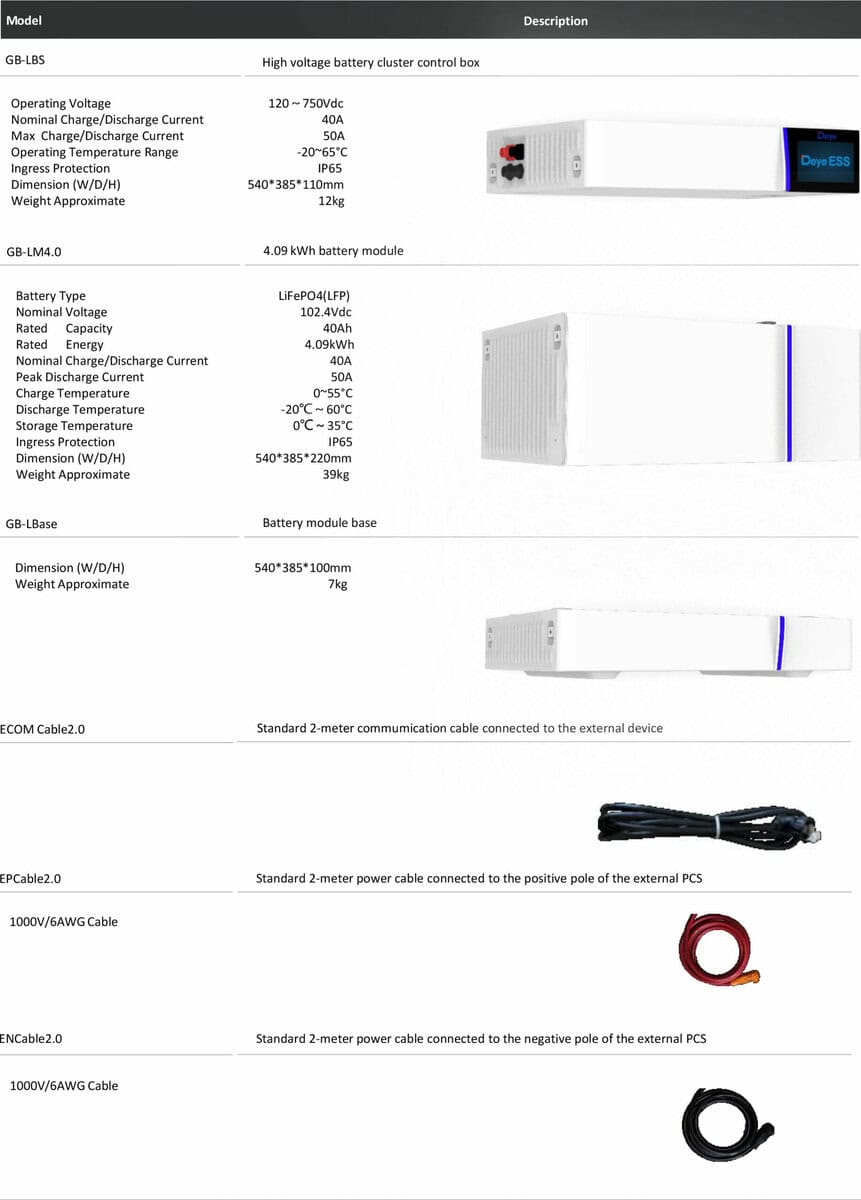

Specifications:

  • System Nominal Voltage: 204.8V to 614.4V (depending on the number of battery modules)
  • System Operating Voltage: 166.4V to 700V
  • System Energy: 8.18kWh to 24.54kWh (depending on the number of battery modules)
  • System Usable Energy: 7.36kWh to 22.10kWh (depending on the number of battery modules)
  • Charge/Discharge Current: 20A (recommended), 40A (nominal), 50A (peak discharge for 2 mins at 25°C)
  • Working Temperature: Charge: 0~55°C/Discharge: -20~60°C
  • Humidity: 5%~90%
  • IP Rating of Enclosure: IP65
  • Storage Temperature: 0°C to 35°C
  • Dimensions: 540 x 385 x 650mm to 540 x 385 x 1530mm (depending on the number of battery modules)
  • Weight: 97kg to 253kg (depending on the number of battery modules)
  • Installation Location: Floor Mount

The Deye GB-L Modular Battery System is the perfect choice for those seeking a reliable, efficient, and customizable energy storage solution. With its advanced features, wide operating temperature range, and environmental friendliness, the GB-L system is suitable for a variety of applications. Choose Deye for your energy storage needs and experience the difference in performance and quality.
