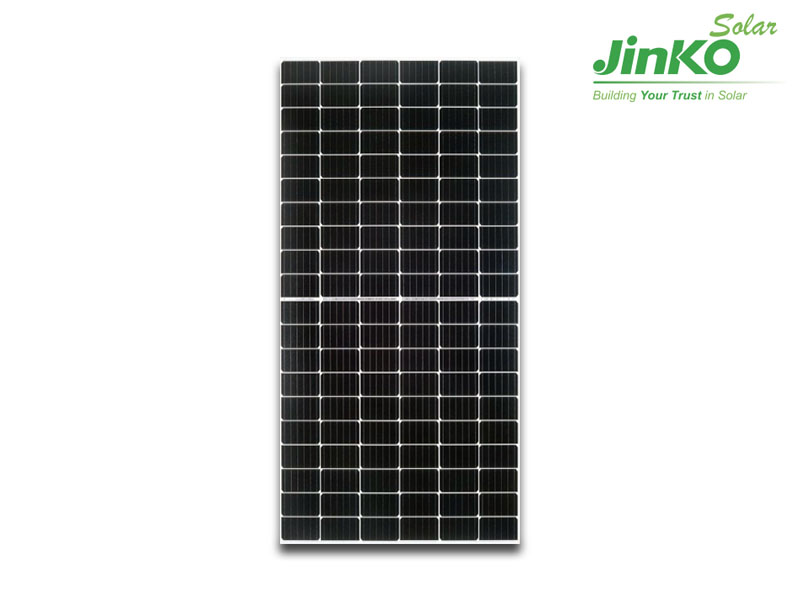

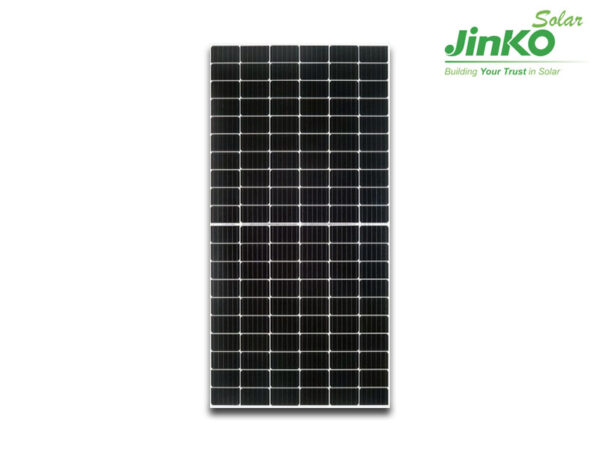

JinKo 555W 144 Cell Tiger Pro 72HC

Jinko 555 Watt Mono Solar Panel

• JinKo 555W 144 Cell Tiger Pro 72HC Mono-Facial Module Solar Panel
• Model JKM-555M-72HL4-V
• Mono-Facial Module.
• 555W Solar Panel.
• Equipped with 144 Cells.
• Equipped with an Anodized Aluminium Alloy Frame.
• Enjoy Positive Power Tolerance of 0 to 3%
• Multi Busbar Technology – better light trapping & current collection to improve module power output & reliability.
• Reduced Hot Spot Loss – better temperature coefficient.
• Longer Life-Time Power Yield.
• Resistance against high salt mist & ammonia.
• Cell Type: P Type Mono-Crystalline.
• Junction Box: IP68
• Withstands high wind loads (2400pa)
• Maximum Power: 555W (STC) & 413W (NOCT)
• Maximum Voltage: 40.99V (STC) & 38.59V (NOCT)
• Maximum Current: 13.54A (STC) & 10.70A (NOCT)
• Open-Circuit Voltage: 49.72V (STC) & 46.93V (NOCT)
• Short-Circuit Current: 14.12A (STC) & 11.40A (NOCT)
• Module Efficiency STC: 21.48%
• Operating Temperature: -40°C to 85°C
• Maximum System Voltage: 1000/1500VDC (IEC)
• Maximum Series Fuse: 25A
• Weight: 28.9Kg
• Dimensions (L x W x D): 2278 x 1134 x 35 mm
• Refer To Brochure For Detailed Product Specification.
• Mounting Kits & Accessories Not Included – Sold Separately.
• 12-Year Limited Product Warranty. T & C’s Apply
